Electro-555
Top Slide Electro manual with castor wheels and split legs Manufacturer
Category: Surgical Table
Availability: Contact for availability
Product Positions / Movements
| Position Image | Movement Title | Angle / Value |
|---|---|---|
 |
Reverse Trendelenburg | 30° |
 |
Trendelenburg | 30° |
 |

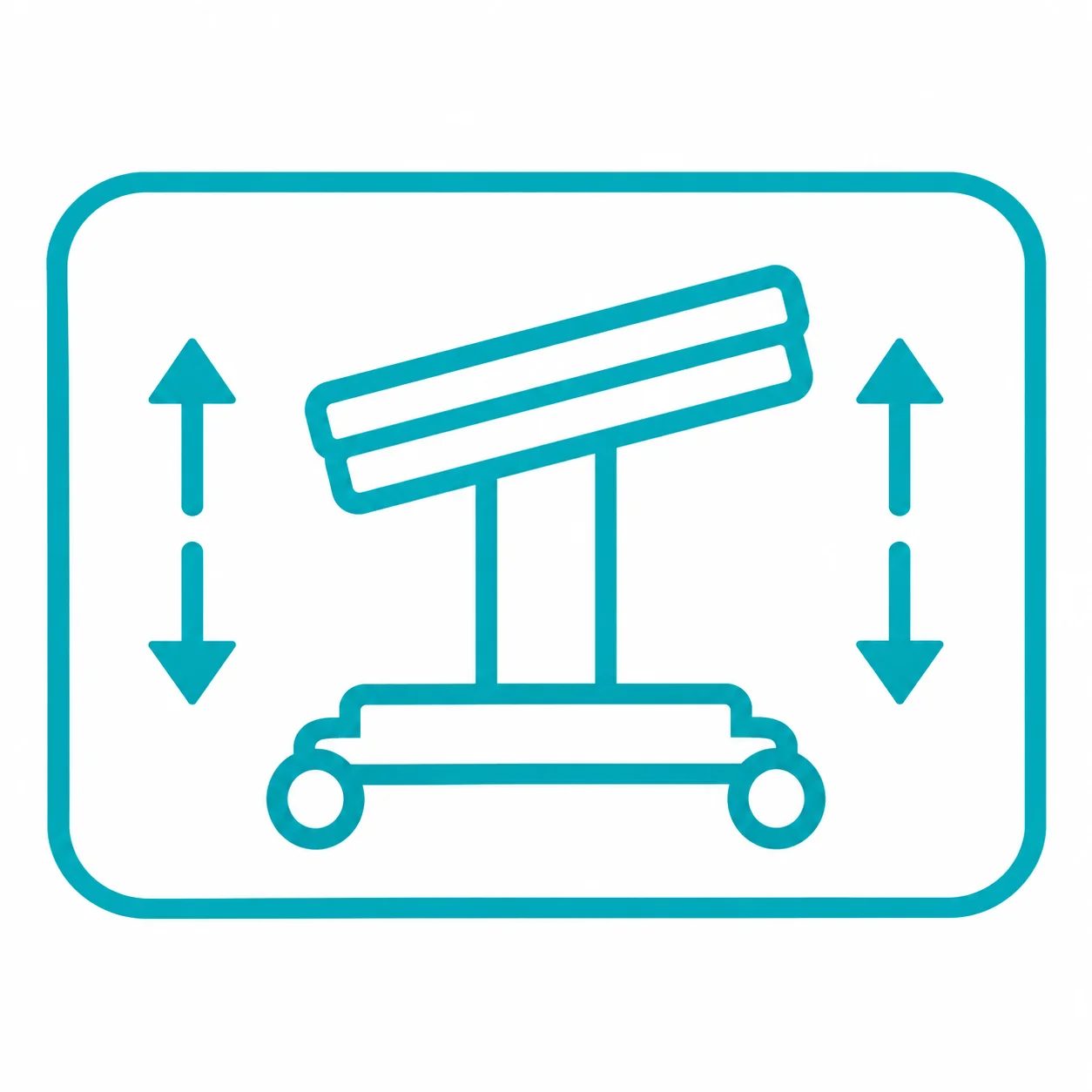

Lateral Tilt Left/Right | 22° |
 |
Head Plate Up/Down | 50°/90° |
 |
Back Plate Up/Down | 85°/45° |
 |
Leg Plate Up/Down | 80°/90° |
 |

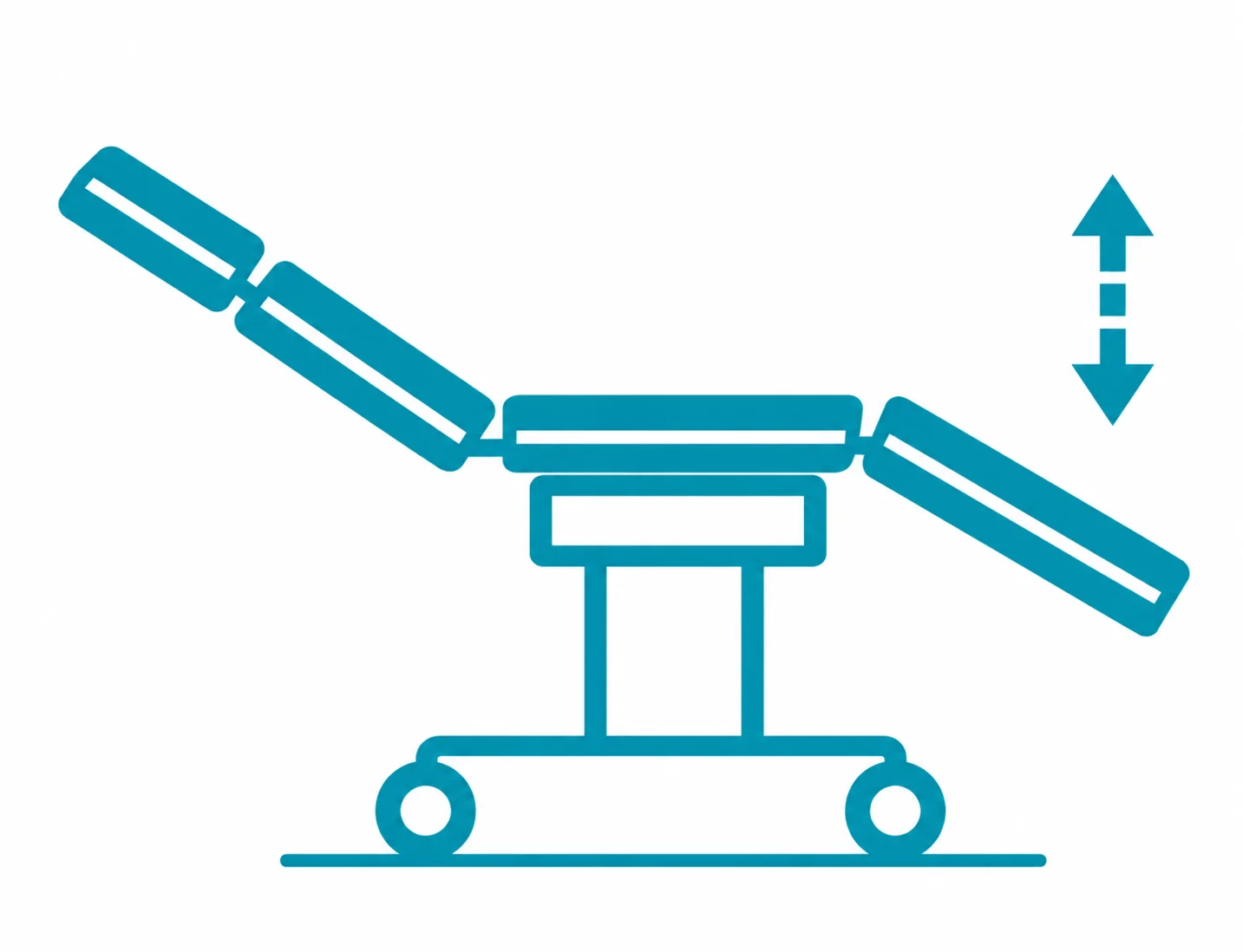

Kidney Bridge Up | 100mm |
 |
Horizontal Sliding | 300mm |
 |
Flex | 110° |
 |
Reflex | 220° |
Technical Specifications
| Overall Length | 1950mm Overall width |
|---|---|
| TB/RTB | 22degree |
| Back Section Adjustment | 80/20 degree |
| Minimum height | 730mm |
| Maximum height | 1030mm |
| Overall width | 530mm |
No applications added yet.
Features
- Five Section table top gives easy for various surgical positions
- Base & column cover are covered with 304G stainless steel to ensure
- High durability & hygiene for the operation room
- Leg section & Head section interchangeable
- Radio-translucent to provides easy convenience for x-ray procedures
- All positions operated by remote control as well as manually.
- Additional control panel on central column.
