STGH-5 Manufacturer
Category: Surgical Table
Availability: Contact for availability
Product Positions / Movements
| Position Image | Movement Title | Angle / Value |
|---|---|---|
 |
Reverse Trendelenburg | 30° |
 |
Trendelenburg | 30° |
 |

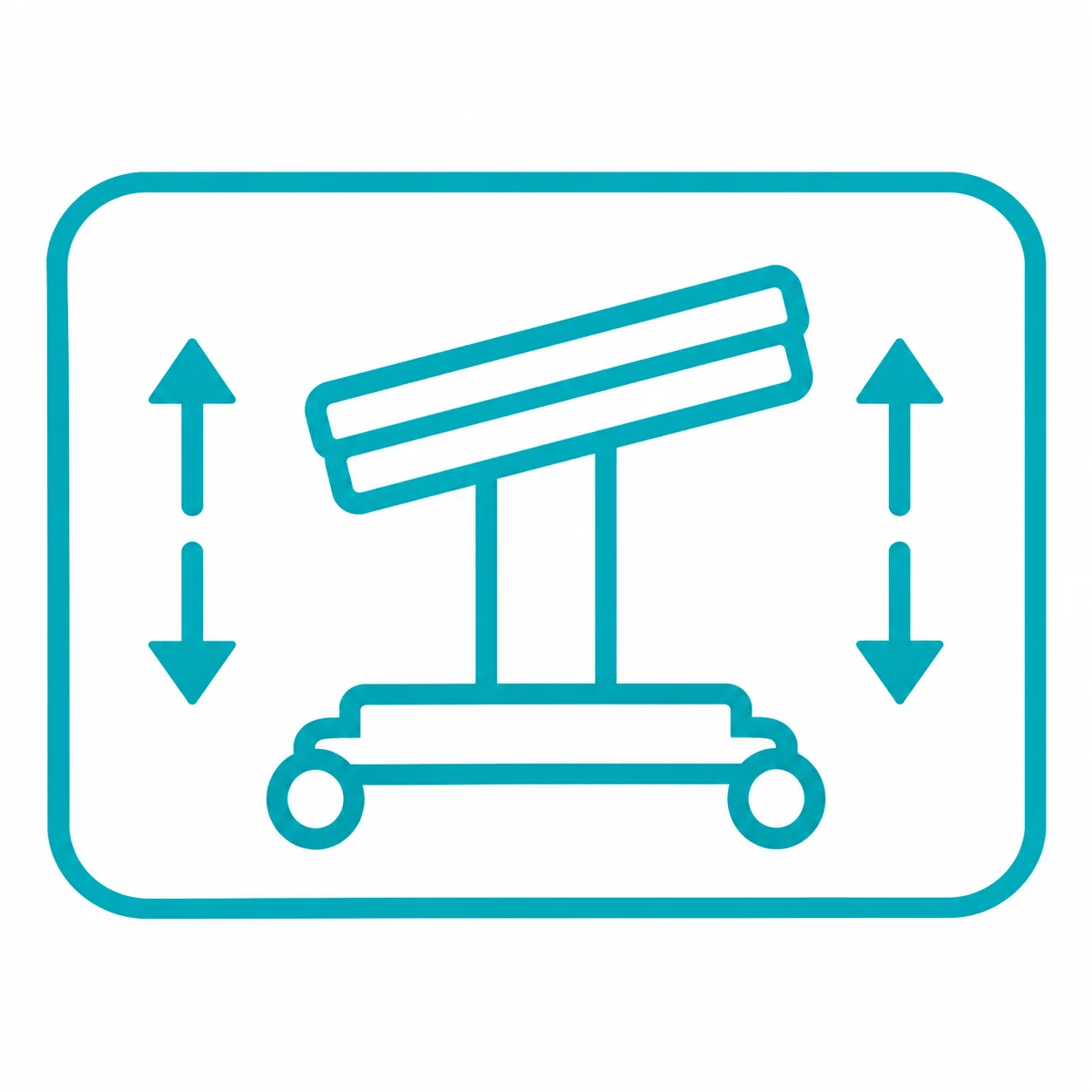

Lateral Tilt Left/Right | 22° |
 |
Head Plate Up/Down | 50°/90° |
 |
Back Plate Up/Down | 85°/45° |
 |
Leg Plate Up/Down | 80°/90° |
 |

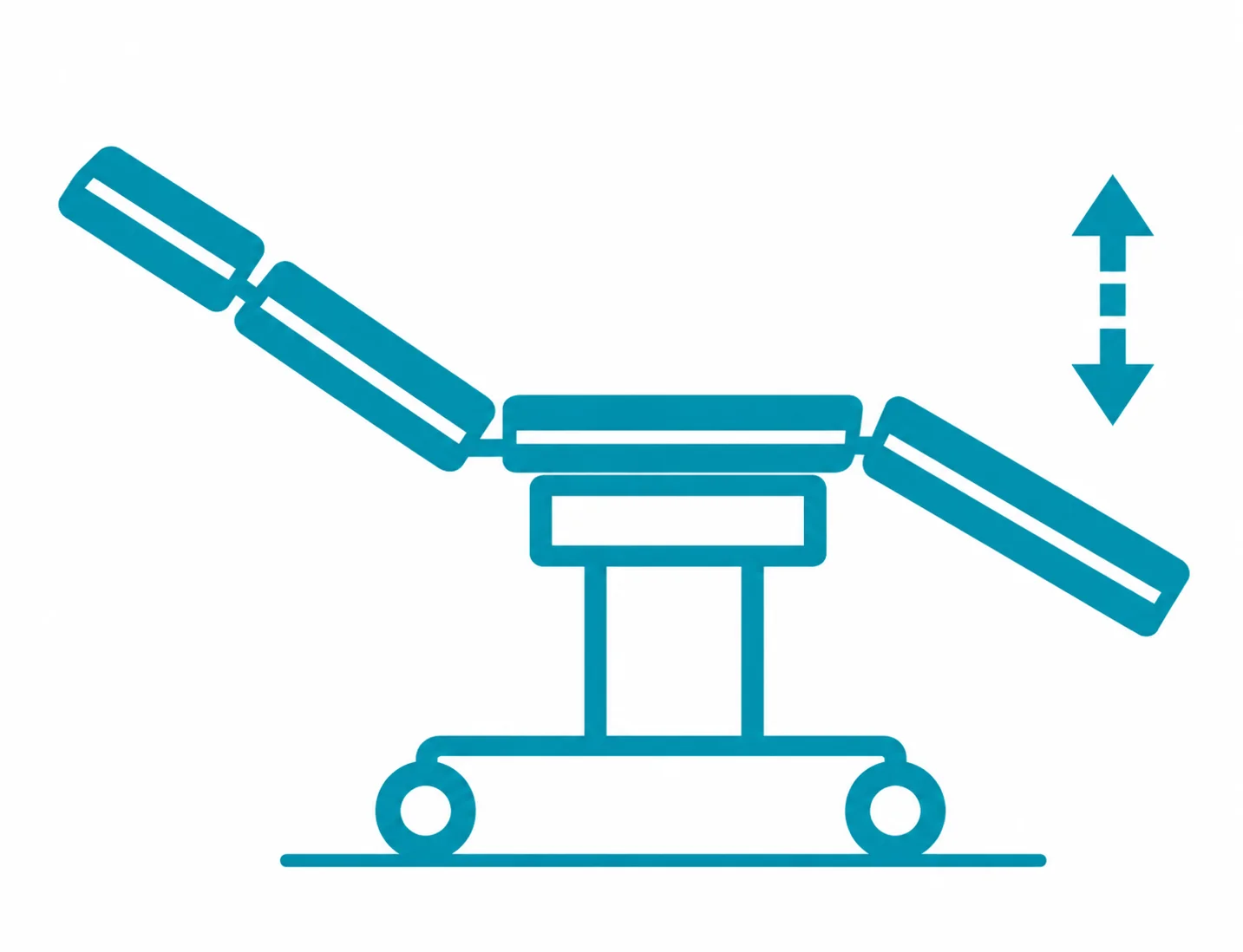

Kidney Bridge Up | 100mm |
 |
Horizontal Sliding | 300mm |
 |
Flex | 110° |
 |
Reflex | 220° |
Technical Specifications
| EXTERNAL LENGTH | 2150MM |
|---|---|
| EXTERNAL WEIDTH | 555MM |
| TABLE HEIGHT MIN | 600MM |
| TABLE HEIGHT MAX | 1100MM |
| ANESTHESIA SCREEN | 1 PCS |
| SHOULDER SUPPORT | 1 PAIR |
| LUMBAR SUPPORT | 1 PAIR |
| ARM REST | 1 PAIR |
| LITHOMY PADS | 1 PAIR |
| HANDLE FOR KINDNEY BRIDGE | 1 PCS |
